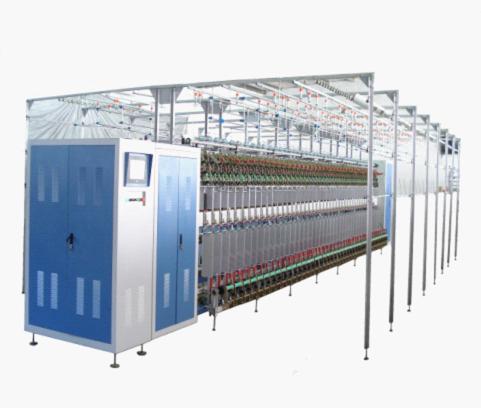

HN5DA Computer Control Fancy Yarn Machine


Available



This machine is suitable for one-step processing parallel yarn, loop yarn,wave yarn,  slub yarn, knot yarn or fancy yarn with their mutual combination .

Raw material can be wool, linen, chemical fiber filament as roving, striped or yarn feeding .The production can be used for weaving, knitting, weaving.

Main feature

All parameters can be set amendedstoredshow on the touching screen by the PLC and human operation. Five columns drawing roller of stepless speed are controlled by five servo systems. Core output and hollow spindle stepless speed are accomplished by five sets of frequent converter systems.

Due to the special drafting device, the material (three kinds or three colors) can be staggered feed to realize color gradual changing and sudden changing(period of dyeing effect) ,rainbow and their combination for more colorful fabric.

Main parameter

Spindle No.

84

Spindle Gauge

200mm

Fiber Length

60-190mm





Drafting form

Three drafting zone made-up by three column rear rollers sharing one front roller and one middle roller, long and short apron, door type cradle pressure

Hollow spindle speed

10000rpm

Ring spindle speed

900-6000rpm

                   Doffing form

No stop single spindle doffing, but also collective stop doffing

Cone size

Ф200*145

Power

25KW

Dimension

11020*5290*2330mm(L*W*H)
