Introduction

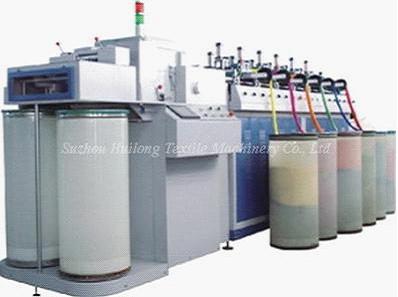

HLZ Fancy Tops Machine adopted step or servo system、PLC and touching screen to produce wool sliver that the color changing step by step and can mix the different material sliver according to the proportion .The production can feed to roving frame、ring spinning machine and fancy yarn machine to spin fancy wool yarn and fancy yarn.
The machine concludes two types :
HLZ-A , Fancy Tops Machine of long fiber of wool spinning or wool-like:
HLZ-B, Drawing Frame of short fiber of cotton spinning or cotton-like.
Technical parameter:
|
HLZ-A |
|
Type of gill |
The staggered form |
|
Type of needle impel |
Screw or handspike |
|
No.of feeding base sliver |
2 |
|
Feeding decorate sliver 2 lines of six colors each |
|
No.of outlet sliver |
2 |
|
Weight of outlet |
3-10g/m |
|
Power |
5.4kw |
|
Dimension(L*W*H) |
5000*1450*2200(no cans) |
|
HLZ-B |
|
Type of drawing |
three up and three down pressure bar |
|
Length of fiber |
38~76mm |
|
No. of feeding base sliver |
2 |
|
Feeding decorate sliver 2 lines of four colors each |
|
No. of outlet sliver |
2 |
|
Weight of outlet |
3-10g/m |
|
Power |
4.6kw |
|
Dimension(L*W*H) |
4000*1950*2200(no cans) |
|
