Introduction

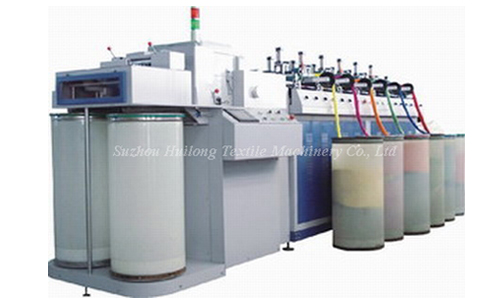

HLZ Fancy Tops Machine adopted step or servo system、PLC and touching screen to produce wool sliver that the color changed step by step and can mix the different material sliver according to the proportion. The production can feed to roving frame、ring spinning machine and fancy yarn machine to spin fancy wool yarn and fancy yarn.
The machine concludes two types:
HLZ-A, Fancy Tops Machine of long fiber of wool spinning or wool-like;
HLZ-B, Drawing Frame of short fiber of cotton spinning or cotton-like.
Technical Parameter
HLZ-A
Type of gill: the staggered form
Type of needle impel: screw or handspike
No. of feeding base sliver: 2
Feeding decorate sliver 2 lines of six colors each
No. of outlut sliver: 2
Weight of outlet: 3-10g/m
Power: 5.4kw
Dimension: 5000*1450*2200(no cans)
HLZ-B
Type of drawing: three up and three down pressure bar
Length of fiber: 22-76mm
No. of feeding base sliver: 2
Feeding decorate sliver 2 lines of four colors each
No. of outlut sliver: 2
Weight of outlet: 3-10g/m
Power: 4.6kw
Dimension: 4000*1950*2200(no cans)
|
